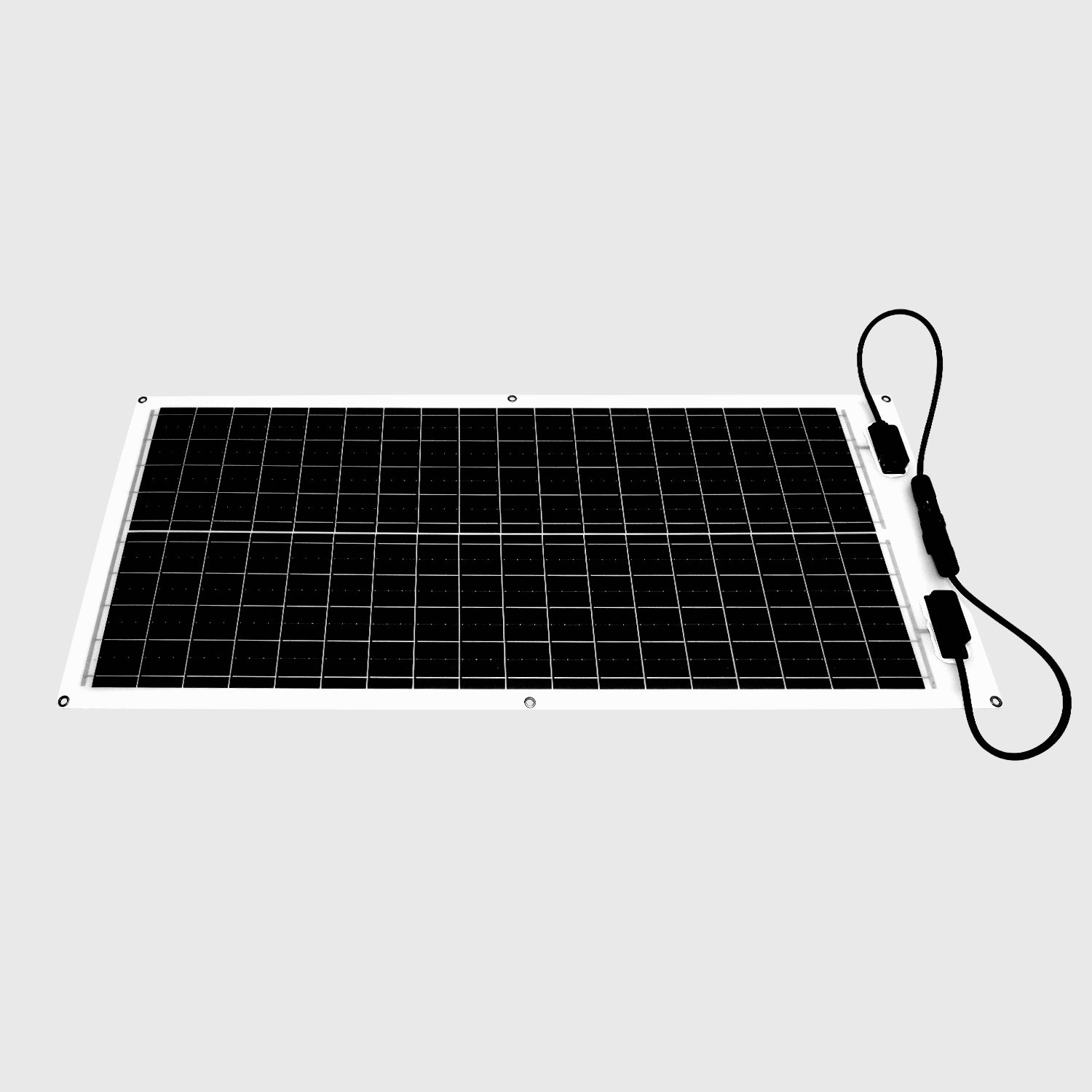

50 Watt Flexible Monocrystalline Solar Panel
Couldn't load pickup availability
Need personalized supplement recommendations?
Experience the future of solar power with our 50W Flexible Solar Panel. This cutting-edge panel is designed to blend seamlessly into various surfaces, offering flexibility, lightweight convenience, and durability for a wide range of applications.
Flexibility Beyond Limits

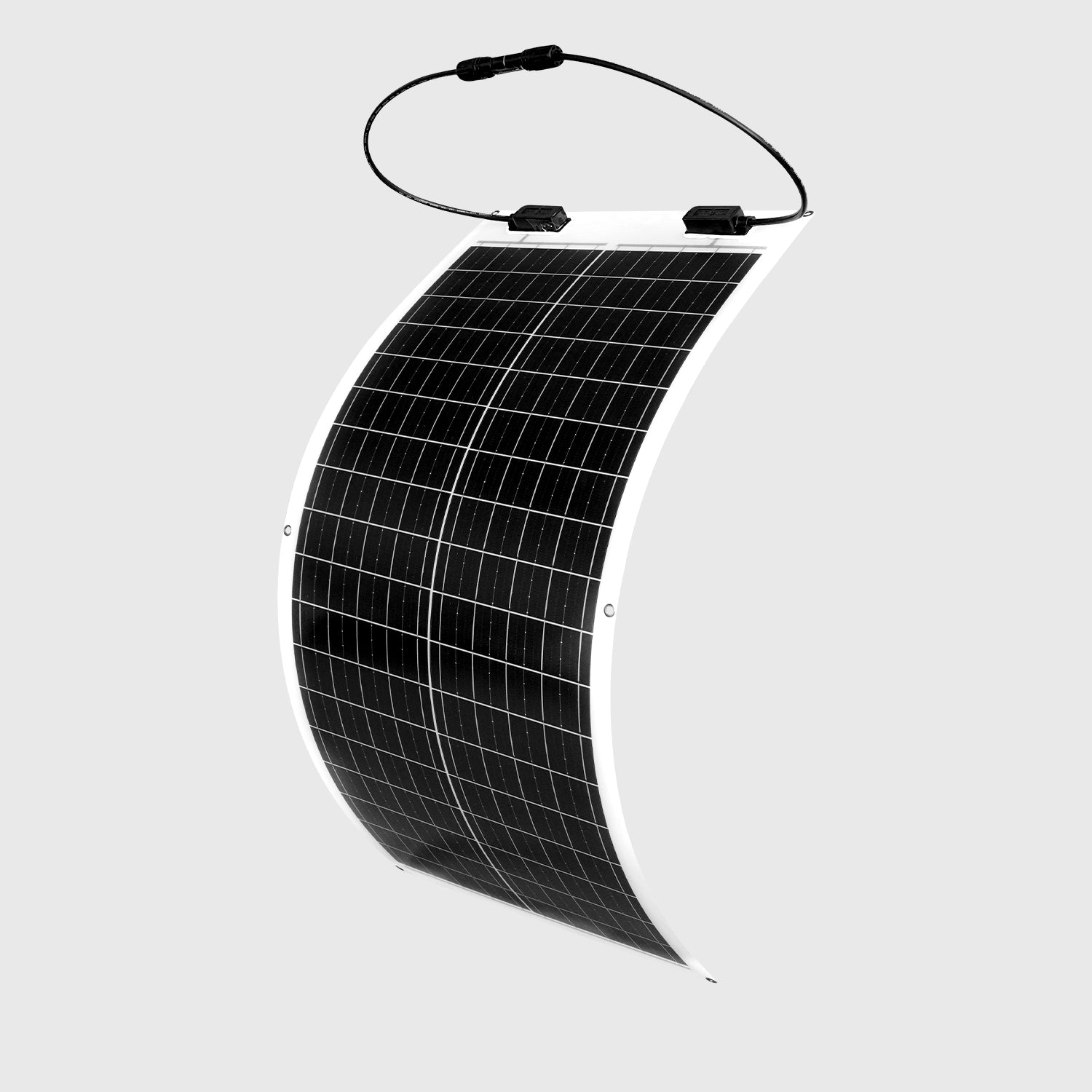

This panel is incredibly flexible and can be bent to fit various surfaces, making it perfect for unconventional installations.
Ultra-Lightweight
Weighing only a quarter of traditional solar panels, it's easy to install and transport, reducing the load on your structure or vehicle.
Ultra-Thin Design
With a thickness of just one-tenth of an inch, it's barely noticeable once installed, maintaining a sleek appearance.
Rugged and Reliable
Rigorously tested, the 50W panel is designed to withstand extreme wind forces of up to 2400 Pa and heavy snow loads of up to 5400 Pa, ensuring its longevity.With an IP68 rating, this panel can withstand immersion in water and is perfect for marine and outdoor applications.
Versatile Applications:
-
Vehicle Rooftops: Ideal for mounting on the roof of your van, truck, or RV to harness solar power on the go.
-
Marine Use: Power your boat or sailboat effortlessly, ensuring a reliable source of energy for your marine adventures.
-
Camping and Off-Grid Living: Perfect for off-grid enthusiasts and campers seeking a lightweight, low-profile energy source.
-
Teardrop Trailers: Keep your teardrop trailer powered up for extended trips into nature.
Specifications
| Electrical Properties electrical properties | ||
| Testing Condition | 1000 w/m2, 25℃, AM 1.5 G spectrum | |
| Power | 50W | |
| Short Circuit Current | 2.58A | |
| Open Circuit Voltage | 24.8V | |
| Maximum power point current PMPP Current | 2.43A | |
| Maximum power point voltage PMPP Voltage | 20.6V | |
| Power tolerance | 0/+2W | |
| Temperature Parameters | ||
| Rated operating temperature | 48℃ | |
| Isc temperature coefficient (%K)Isc TP | 0.06 | |
| Voc temperature coefficient (%K)Voc TP | -0.3 | |
| PMPP temperature coefficient (%K)PMPP TP | -0.39 | |
| Temperature Parameters | ||
| Rated operating temperature | 48℃ | |
| Isc temperature coefficient (%K)Isc TP | 0.06 | |
| Voc temperature coefficient (%K)Voc TP | -0.3 | |
| Structure Parameters | ||
| Dimension | 865*375*1.8(0/+3mm) | |
| Thickness | 1.8(mm) | |
| Weight | 0.9±0.1kg | |
| Encapsutating Material | Fiber reinforced membrane | |
| Working Temperature | -40°C~+85°C | |
| Working Humidity | 90% | |
| Junction Box | 65*23*15(mm)/IP67/ split | |
| Cable&Connector | 4mm2/450(+10/-0)mm cable MC4 | |
